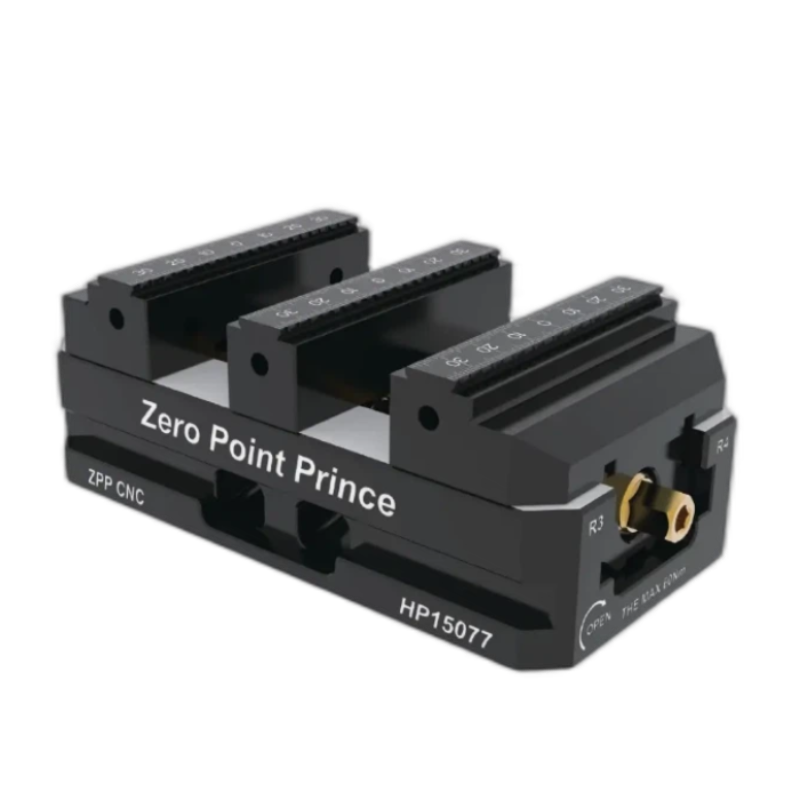

HP15077 Manual Quick-Change Series (Double-Station Steel Jaw): Simultaneous Machining Efficiency for Small Parts & Batch Production

Traditional single-station manual jaws are a productivity bottleneck when processing small parts or needing simultaneous front/back machining—you have to stop, swap workpieces, and realign, wasting valuable shop time. The HP15077 Double-Station Steel Jaw is engineered to eliminate this downtime, combining dual-clamping capability with industrial-grade strength for high-efficiency machining of small-to-medium workpieces.

Designed for Simultaneous Processing & Batch Production

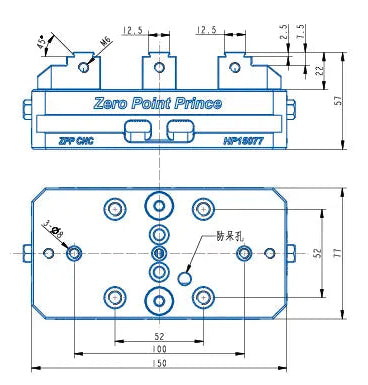

The HP15077’s dual independent clamping stations are a game-changer for shops machining small aerospace connectors, medical precision components, or 5-axis multi-face parts. With a 1507757mm footprint, it fits two small workpieces (e.g., 30mm x 50mm brackets or 20mm x 40mm implants) without overcrowding the spindle—perfect for batch production where every second of uptime counts. Whether you’re doing simultaneous front/back machining or processing two identical parts at once, this jaw lets you double your output without doubling your downtime.

Industrial-Grade Strength for Heavy Cuts

Built from heat-treated hardened steel, the HP15077 delivers a massive 14kN clamping force (60Nm torque) to prevent workpiece movement during aggressive cuts—critical for machining hard materials like titanium, stainless steel, or Inconel. The compact profile (relative to its dual-station size) minimizes 5-axis interference, ensuring full access to workpiece features like deep cavities, angled surfaces, or thin walls without compromising clamping security.

Manual Quick-Change for Zero Downtime

As part of the manual quick-change series, the HP15077 features a tool-free manual mechanism that lets you swap workpieces in seconds. Just turn the knob to release the jaw, load new parts, and re-clamp—no more wasting time tightening bolts or realigning. This reduces downtime by up to 50% compared to traditional bolted jaws, making it ideal for job shops or production lines where frequent workpiece changes are the norm.

Versatile Clamping for Diverse Workpieces

With a forward clamping range of 0-37mm and reverse clamping range of 26-54mm, the HP15077 accommodates a wide variety of workpiece sizes—from thin sheets (0mm) to thick blocks (54mm). The 3.2kg weight (lightweight for a dual-station steel jaw) ensures minimal rotational inertia on rotary tables or indexers, enabling faster acceleration/deceleration for high-speed machining.
