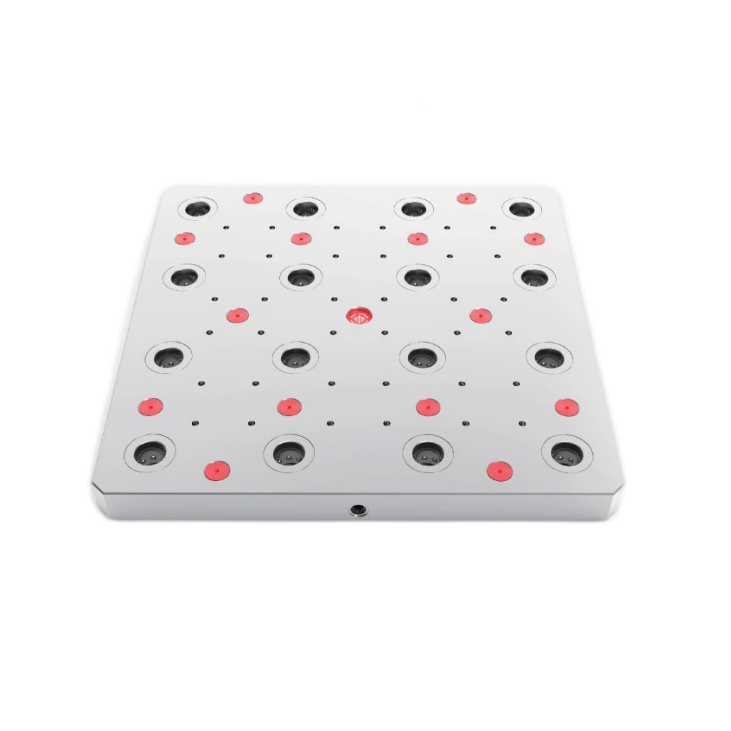

AP96-3604 Pneumatic Zero Point Clamping Unit – High Precision (360*360*30mm)

Large‑Format Pneumatic Clamping, 20 kN Locking Force for Heavy‑Duty Automation

Automate Massive Pallets with a Single, Ultra‑Low‑Profile Unit

Need pneumatic zero‑point clamping for oversized pallets, heavy tombstones, or large‑scale 5‑axis workholding? The AP96‑3604 delivers 20 kN locking force @ 7 bar in a massive 360×360×30 mm hardened stainless steel body – only 30 mm high, with a large square footprint. Perfect for automated pallet pools, HMC tombstone fixtures, or heavy‑duty rotary tables requiring maximum stability and minimal height.

Core Benefits – Quick & Clear

•
  Pneumatic Actuation
  Lock/unlock with shop air (7 bar). Seamlessly integrate into robotic cells, pallet changers, or lights‑out machining – no manual operation, consistent <0.005 mm repeatability.

•
  20 kN Locking Force @ 7 bar
  Powerful, reliable clamping for heavy pallets (up to 800 mm square), large tombstones, or multi‑station fixture plates – holds rigidly under aggressive milling or high‑speed finishing.

•

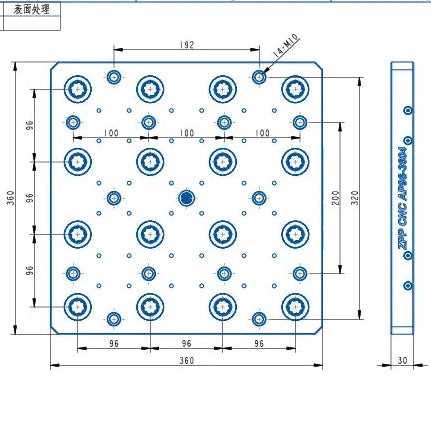

  Large Square Footprint
  360×360 mm mounting area – single‑unit support for oversized pallets reduces complexity. 14×M10 mounting holes ensure ultra‑secure, vibration‑free attachment.

•
  Ultra‑Low Profile
  Just 30 mm tall – preserves critical Z‑axis stroke on large 5‑axis machines, gantries, or low‑clearance rotary tables.
