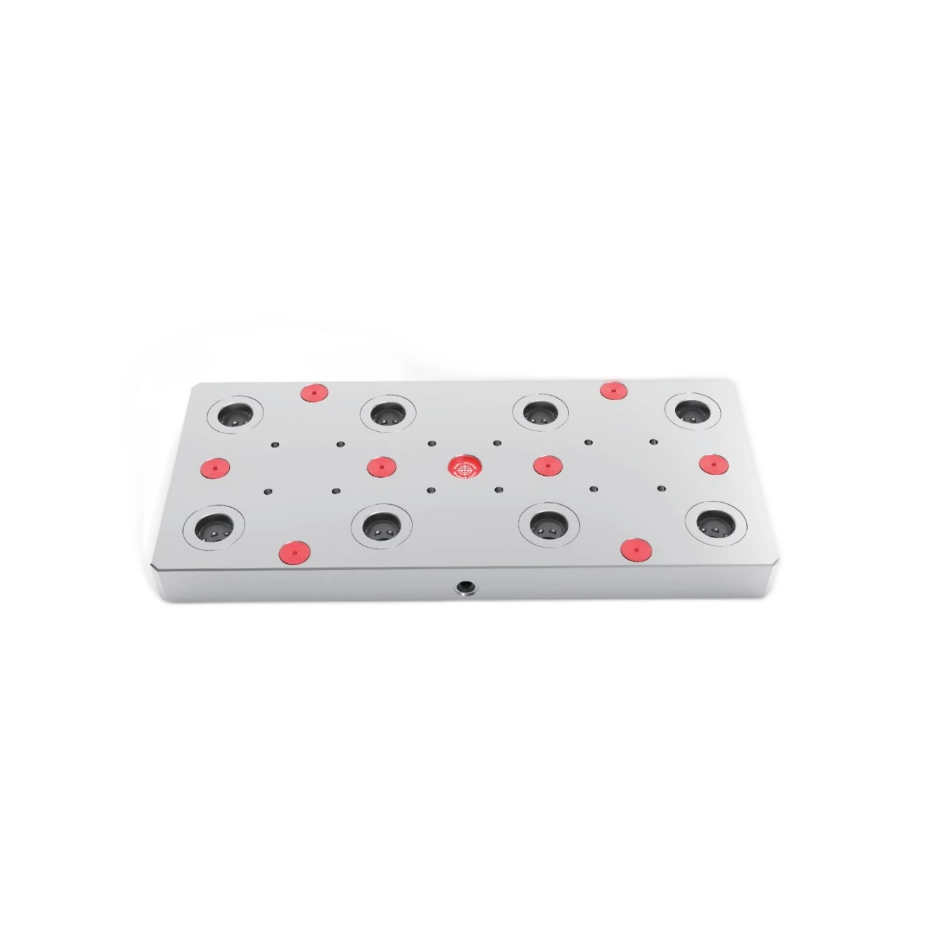

AP96-352 Pneumatic Zero Point Clamping Unit – High Precision (352*160*30mm)

Long‑Span Pneumatic Clamping, Full 20 kN Locking Force for Large Pallets

Automate Oversized or Twin Pallets with One Powerful Unit

Need pneumatic zero‑point clamping for extra‑long pallets or dual‑fixture layouts? The AP96‑352 delivers 20 kN locking force @ 7 bar in a slim yet extended 352×160×30 mm hardened stainless steel body – only 30 mm high, with a 352 mm mounting length. Perfect for automated pallet pools, twin‑station tombstone fixtures, or large 5‑axis tables requiring stable, wide‑span support.

Core Benefits – Quick & Clear

•
  Pneumatic Actuation
  Lock/unlock with shop air (7 bar). Seamlessly integrate into robotic cells or lights‑out machining – no manual operation, consistent <0.005 mm repeatability.

•
  20 kN Locking Force @ 7 bar
  Powerful, reliable clamping for large pallets (up to 700 mm long) or heavy fixture plates – holds rigidly under aggressive milling.

•
  Long‑Span Design

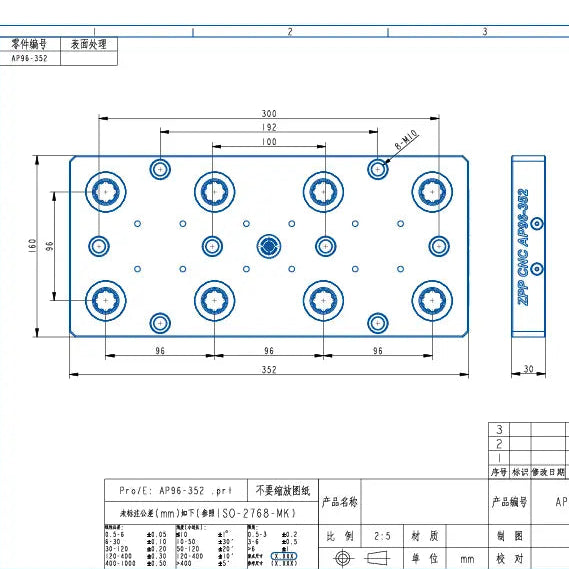

  352 mm length × 160 mm width – ideal for single‑unit support of elongated pallets or twin‑fixture setups. 8×M10 mounting holes ensure secure, vibration‑free attachment.

•
  Ultra‑Low Profile
  Only 30 mm tall – preserves critical Z‑axis stroke on 5‑axis machines, gantries, or low‑clearance rotary tables.
