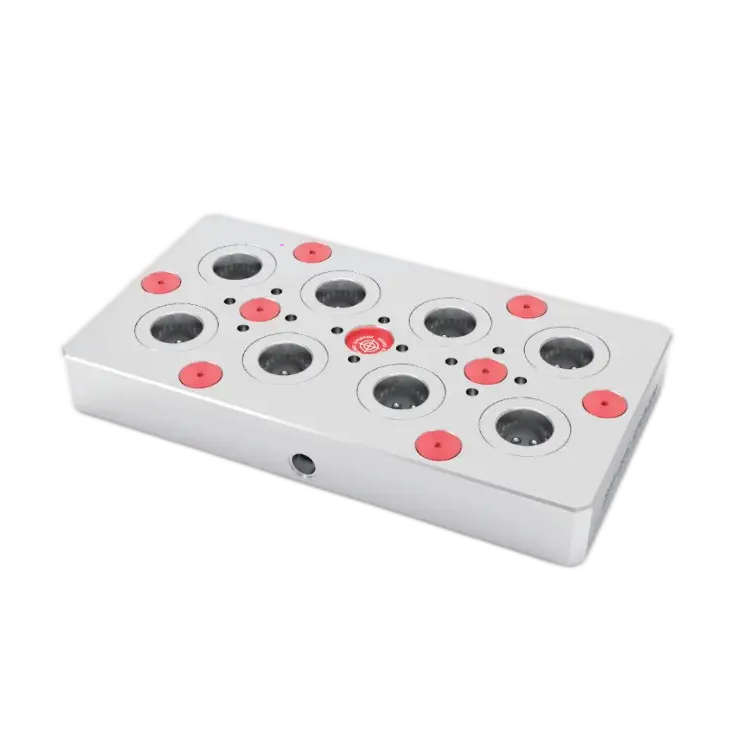

AP52-230 Pneumatic Zero Point Clamping Unit – High Precision (230*125*30mm)

Long‑Span Pneumatic Clamping, Full 20 kN Locking Force

Automate Large or Multiple Pallets with a Slim Footprint

Need pneumatic zero‑point clamping for elongated pallets or dual‑station setups? The AP52‑230 delivers 20 kN locking force @ 7 bar in a slim 230×125×30 mm hardened stainless steel body – only 30 mm high, with a long mounting span. Perfect for automated pallet pools, twin‑pallet fixtures, or rotary tables where width is limited but length matters.

Core Benefits – Quick & Clear

•
  Pneumatic Actuation
  Lock/unlock with shop air (7 bar). Integrate seamlessly into robotic cells or lights‑out machining – no manual operation, consistent <0.005 mm repeatability.

•
  20 kN Locking Force @ 7 bar
  Powerful, reliable clamping for medium to large pallets and fixture plates. Holds rigidly under heavy milling or high‑speed finishing.

•
  Long‑Span Design

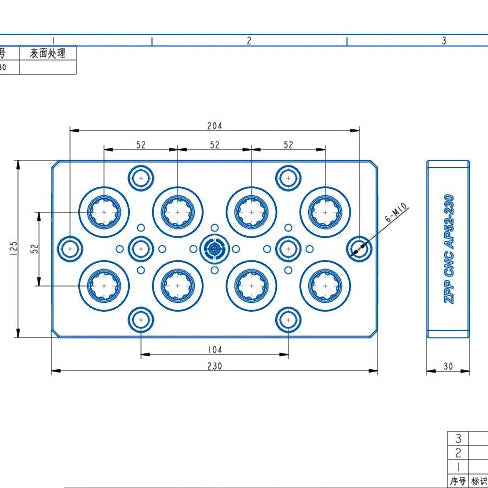

  230 mm length × 125 mm width – ideal for elongated pallets or twin‑fixture layouts. 6×M10 mounting holes ensure secure, vibration‑free attachment.

•
  Ultra‑Low Profile
  Only 30 mm tall – preserves Z‑axis stroke on 5‑axis machines, gantries, or low‑clearance setups.
