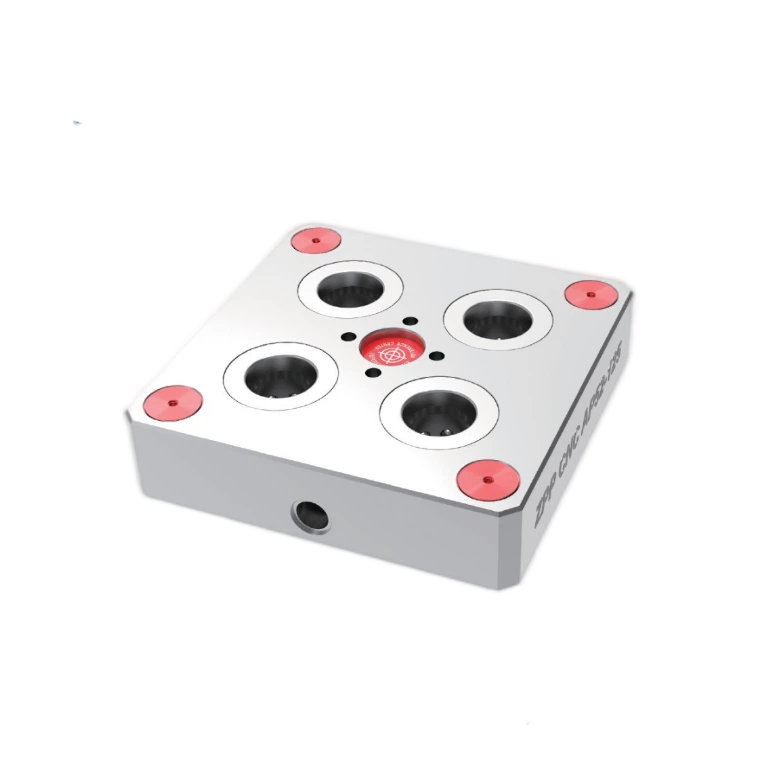

AP52-125 Pneumatic Zero Point Clamping Unit – High Precision (125*125*30mm)

Pneumatic‑Powered, 20 kN Locking Force for Automated Workholding

Automate Your Changeovers, Keep Sub‑Micron Precision

Manual clamping slows down high‑mix production. The AP52‑125 pneumatic zero‑point unit delivers 20 kN holding force at 7 bar – fully automated, tool‑free pallet changes in seconds. Housed in a compact 125×125×30 mm hardened stainless steel body, it brings high‑speed repeatability to automated cells, rotary tables, and pallet pools.

Core Benefits – Quick & Clear

•
  Pneumatic Actuation
  Lock/unlock with shop air (7 bar). Seamlessly integrate into automated workholding systems – no manual wrenching, no operator fatigue. Ideal for robotic pallet tending or lights‑out machining.

•
  20 kN Locking Force @ 7 bar
  Powerful, repeatable clamping for fixtures and pallets – holds parts rigidly under heavy cutting. Repeatable positioning <0.005 mm.

•
  Ultra‑Low Profile & Compact Footprint

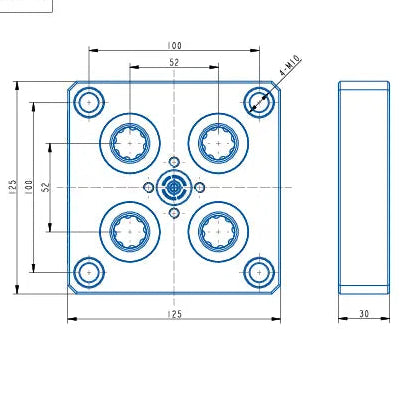

  Only 30 mm high, 125×125 mm square. Preserves Z‑axis travel and fits tight machine tables or 5‑axis trunnions.

•
  Hardened Stainless Steel
  Corrosion‑resistant and wear‑resistant – maintains micron‑level accuracy over millions of cycles. Suitable for wet machining and harsh shop environments.
