In 4-axis CNC machining, achieving high precision and efficiency depends heavily on one critical factor: workholding.
Many manufacturers focus on machine capabilities but overlook how the workpiece is held. Poor workholding often leads to vibration, inconsistent tolerances, and wasted machining time.
Among modern solutions, L-plates have become a preferred choice for improving both machining accuracy and productivity.
Why Workholding Matters in 4-Axis Machining
4-axis machining allows parts to be rotated and machined from multiple sides in a single setup.
However, this introduces challenges:
- Maintaining rigidity during rotation
- Avoiding tool interference
- Ensuring consistent positioning
👉 Without proper workholding, the benefits of 4-axis machining are significantly reduced.

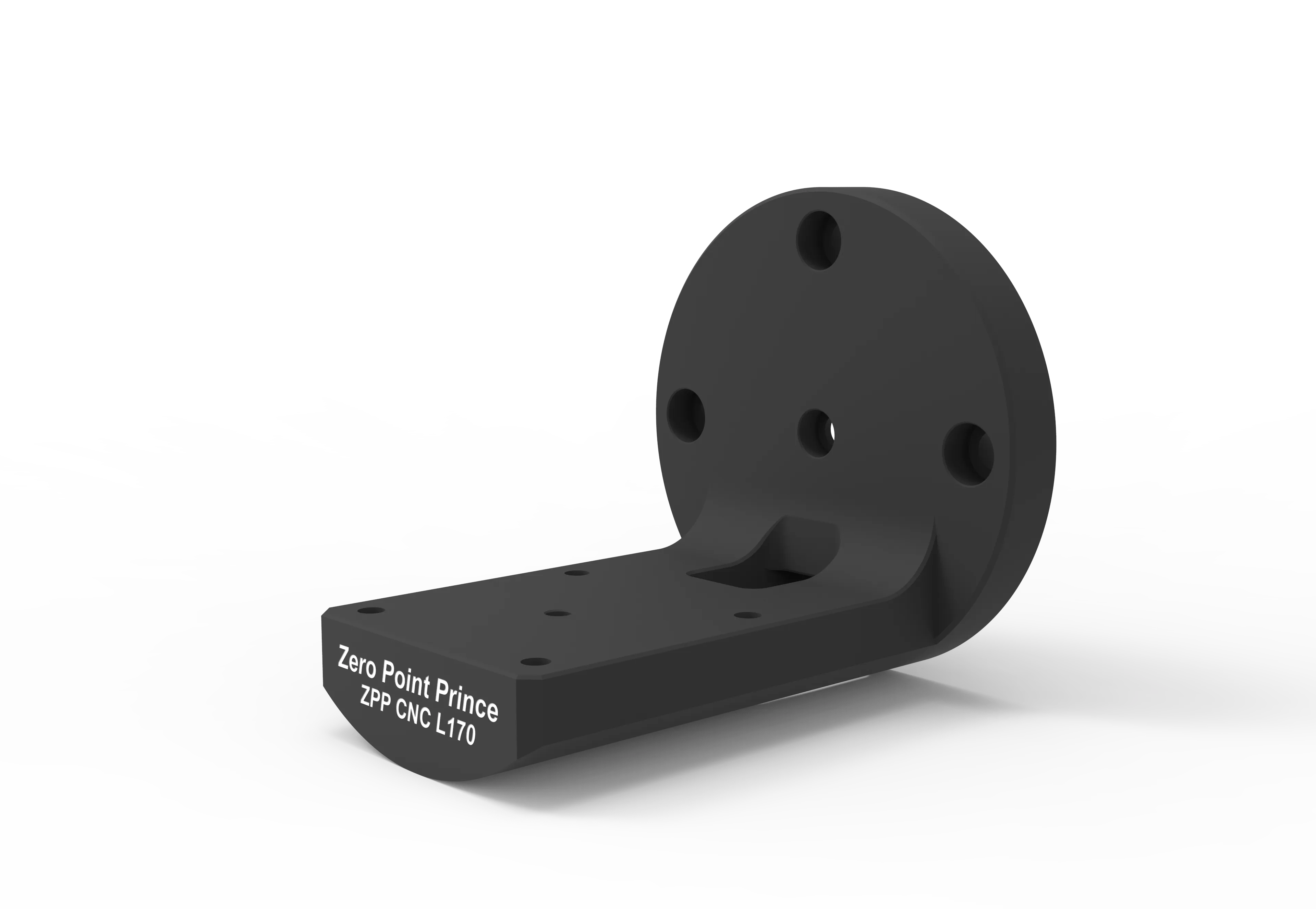

What is an L-Plate in CNC Machining?
An L-plate is a precision workholding component with a vertical and horizontal mounting surface.
It is specifically designed to:
- Improve access to multiple machining surfaces
- Reduce repositioning
- Increase structural rigidity
👉 This makes it ideal for complex parts and multi-side machining.
Key Advantages of L-Plates
1. Improved Rigidity
Compared to extended setups or stacked fixtures:
- One-piece L-plates reduce deformation
- Better load distribution improves stability
👉 Result: Less vibration and better surface finish
2. Better Tool Accessibility
The open structure allows:
- More machining angles
- Reduced tool interference
- Fewer setups
👉 Result: Higher efficiency
3. Higher Repeatability
Precision-machined L-plates can achieve:
- Repeatability around 0.01 mm
👉 This is critical for:
- Batch production
- Tight tolerance parts
L-Plate vs Traditional Workholding
Compared to vises and chucks:
- L-plates provide better multi-side access
- Reduce overhang and improve rigidity
- Enable more efficient 4-axis workflows
Combining L-Plates with Zero Point Systems
For maximum efficiency, many shops combine L-plates with zero point clamping systems.
Benefits include:
- Fast setup changes
- Consistent positioning
- Reduced downtime
👉 This combination significantly improves overall productivity.
Conclusion
L-plates are not just simple fixtures — they are a key factor in optimizing 4-axis machining.
By improving rigidity, accessibility, and repeatability, they help manufacturers:
- Achieve better accuracy
- Reduce setup time
- Increase machining efficiency
👉 If you're working with multi-side machining, upgrading to an L-plate system can deliver immediate improvements.
